G series single screw pumps
Q=0.8-60 m³/h ( 3.52 USGPM – 264 USGPM )
P=0~1.2 Mpa (0~174 psi)
Single screw pumps are rotary positive displacement pumps. They work according to the positive displacement principle. The interference fit of the single-helix metal rotor and the double-helix elastic stator forms sealed cavitites. When the rotor moves inside the stator, the liquid moves in the axial direction from the suction port to the discharge port.
G series single screw pump is a name for progressive cavity pump in China, and it is also the earliest single screw pump in China.
Its structure is mainly a progressive cavity pump with bearing seat, and in China he has two types.
1. Without reducer
It is mainly used in sewage treatment and low viscosity medium transportation; Such pumps are usually mass-produced, so the price is often very advantageous.
2. With reducer (That is, progressive cavity pump with bearing seat.)
It is often used in the working conditions of large flow, high viscosity, poor fluidity and high pressure.
Without reducer

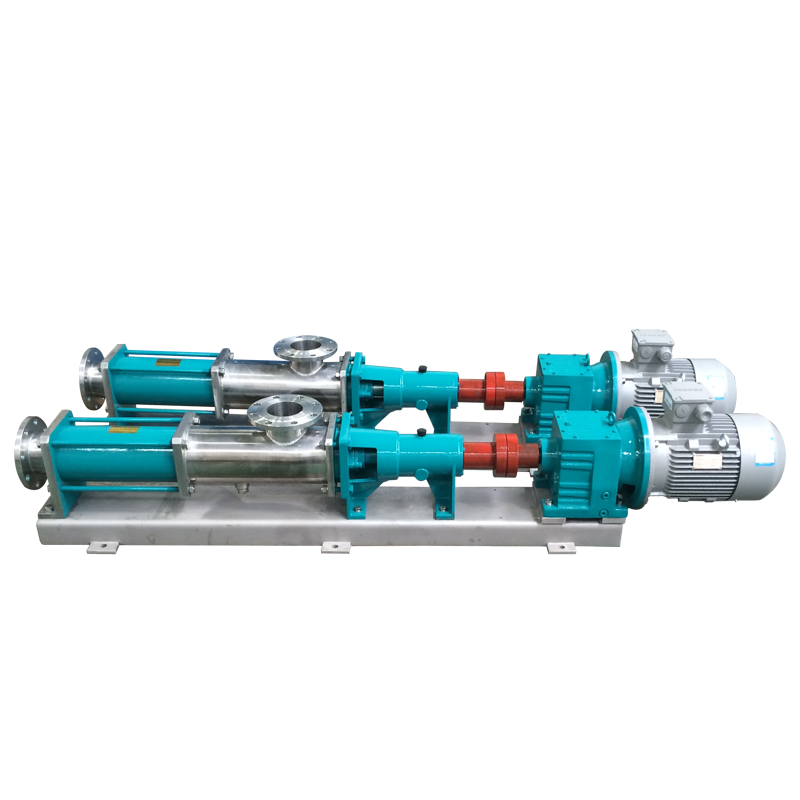

With reducer
G type single screw pump(without reducer) parameter table
| Type | Speed (rpm) | Flow (m³/h) | Pressure (Mpa) | Head (m) | Motor (Kw) | Inlet (mm) | Outlet (mm) | Allowable particle diameter (mm) | Allowable fiber length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| G20-1 | 960 | 0.8 | 0.6 | 60 | 0.75 | DN25 | DN25 | 1.5 | 25 |
| G20-2 | 960 | 0.8 | 1.2 | 120 | 1.1 | DN25 | DN25 | 1.5 | 25 |
| G25-1 | 960 | 2 | 0.6 | 60 | 1.5 | DN32 | DN25 | 2 | 30 |
| G25-2 | 960 | 2 | 1.2 | 120 | 2.2 | DN32 | DN25 | 2 | 30 |
| G30-1 | 960 | 5 | 0.6 | 60 | 2.2 | DN50 | DN40 | 2.5 | 35 |
| G30-2 | 960 | 5 | 1.2 | 120 | 3 | DN50 | DN40 | 2.5 | 35 |
| G35-1 | 960 | 8 | 0.6 | 60 | 3 | DN65 | DN50 | 3 | 40 |
| G35-2 | 960 | 8 | 1.2 | 120 | 4 | DN65 | DN50 | 3 | 40 |
| G40-1 | 960 | 12 | 0.6 | 60 | 4 | DN80 | DN65 | 3.8 | 45 |
| G40-2 | 960 | 12 | 1.2 | 120 | 5.5 | DN80 | DN65 | 3.8 | 45 |
| G50-1 | 960 | 20 | 0.6 | 60 | 5.5 | DN100 | DN80 | 5 | 50 |
| G50-2 | 960 | 20 | 1.2 | 120 | 7.5 | DN100 | DN80 | 5 | 50 |
| G60-1 | 960 | 30 | 0.6 | 60 | 11 | DN125 | DN100 | 6 | 60 |
| G60-2 | 960 | 30 | 1.2 | 120 | 11 | DN125 | DN100 | 6 | 60 |
| G70-1 | 720 | 45 | 0.6 | 60 | 11 | DN150 | DN125 | 8 | 70 |
| G70-2 | 720 | 45 | 1.2 | 120 | 15 | DN150 | DN125 | 8 | 70 |
| G85-1 | 720 | 60 | 0.6 | 60 | 11 | DN150 | DN150 | 10 | 80 |
| G85-2 | 720 | 60 | 1.2 | 120 | 15 | DN150 | DN150 | 10 | 80 |
G type single screw pump(with reducer) parameter table
| Pump Type | Capacity Range (m³/h) | Pressure Range (bar) | Recommended speed (rpm) | Transmission ratio range | Shaft power range (Kw) |
|---|---|---|---|---|---|
| G10-1 | 0.060~0.104 | 6 | 230~362 | 6.3~4.0 | ≤0.55 |
| G10-2 | 0.030~0.054 | 12 | 230~362 | 6.3~4.0 | ≤0.55 |
| G15-1 | 0.12~0.21 | 6 | 230~362 | 6.3~4.0 | ≤0.55 |
| G15-2 | 0.12~0.22 | 12 | 230~362 | 6.3~4.0 | ≤0.55 |
| G20-1 | 0.25~0.52 | 6 | 204~362 | 7.1~4.0 | ≤0.55 |
| G20-2 | 0.25~0.52 | 12 | 204~362 | 7.1~4.0 | ≤0.75 |
| G30-1 | 0.5~0.98 | 6 | 204~362 | 7.1~4.0 | ≤0.55 |
| G30-2 | 0.5~1.0 | 12 | 204~362 | 7.1~4.0 | ≤1.1 |
| G35-1 | 0.85~2.0 | 6 | 204~362 | 7.1~4.0 | ≤0.75 |
| G35-2 | 0.85~2.1 | 12 | 204~362 | 7.1~4.0 | ≤2.2 |
| G40-1 | 1.6~3.5 | 6 | 204~362 | 7.1~4.0 | ≤2.2 |
| G40-2 | 1.65~3.7 | 12 | 204~362 | 7.1~4.0 | ≤3 |
| G50-1 | 2.6~8.2 | 6 | 181~362 | 8.0~4.0 | ≤3 |
| G50-2 | 2.7~8.4 | 12 | 181~362 | 8.0~4.0 | ≤5.5 |
| G60-1 | 3.8~11.2 | 6 | 161~362 | 9.0~4.0 | ≤3 |
| G60-2 | 3.8~11.3 | 12 | 161~362 | 9.0~4.0 | ≤5.5 |
| G70-1 | 4.0~16.5 | 6 | 145~362 | 10.0~4.0 | ≤7.5 |
| G70-2 | 4.0~17 | 12 | 145~362 | 10.0~4.0 | ≤15 |
| G85-1 | 7.5~34 | 6 | 129~362 | 11.2~4.0 | ≤11 |
| G85-2 | 8.0~35 | 12 | 129~362 | 11.2~4.0 | ≤18.5 |
| G105-1 | 18~70 | 6 | 129~362 | 11.2~4.0 | ≤22 |
| G105-2 | 19~72 | 12 | 129~362 | 11.2~4.0 | ≤45 |
| G135-1 | 30~112 | 6 | 102~290 | 14.2~5.0 | ≤30 |
| G135-2 | 32~116 | 12 | 102~290 | 14.2~5.0 | ≤75 |
Direct-connected progressing cavity pump can be used to transport neutral or corrosive liquids, clean and abrasive liquids, liquids containing gas or easily generating bubbles, and liquids with high viscosity or low viscosity (including liquids containing fibers or solid substances)
Environmental protection: the transportation of industrial sewage, domestic sewage and sludge turbid water containing solid particles and short fibers, especially suitable for oil-water separators, plate filter presses and other equipment
Shipbuilding industry: used for transporting residual oil, cleaning tanks, sewage, seawater, etc.;
Petrochemical industry: used for transportation of various oils, especially crude oil;
Textile industry: used for conveying synthetic fiber liquid, viscose liquid, dye, nylon powder, etc.
Medicine and daily chemicals: transportation of various viscous pastes, emulsions and various ointment cosmetics, etc.
Canned food industry: transportation of all kinds of sticky starch, edible oil, honey, sugar sauce, fruit pulp, cream, fish and leftovers;
Brewing industry: all kinds of fermented viscous liquids, concentrated distiller’s grains, grain product residues, all kinds of sauces, pulps and mucus containing massive solid substances, etc.;
Construction industry: spraying and conveying of cement slurry, lime slurry, paint and other pastes;
Metallurgy and mining industry: used to transport oxides and wastewater, mine drainage and liquid explosives, etc.;
Chemical industry: transportation of various suspensions, grease, colloidal slurries, adhesives, paper making, printing, high viscosity ink, black liquor of paper pulp, PVC polymer plastic paste of paper, pulp with various concentrations, short fiber slurry, etc.
G single screw pump wholesale price list of different materials( without reducer )
Cast iron G type single screw pump ex-factory price list
| Type | Flow (m³/h) | Motor (Kw) | Head (m) | Inlet (mm) | Outlet (mm) | Pump with base (without motor) | Whole pump |
|---|---|---|---|---|---|---|---|
| G20-1 | 0.8 | 0.75 | 60 | DN25 | DN25 | $180 | $260 |
| G20-2 | 0.8 | 1.1 | 120 | DN25 | DN25 | $240 | $330 |
| G25-1 | 2 | 1.5 | 60 | DN32 | DN25 | $260 | $380 |
| G25-2 | 2 | 2.2 | 120 | DN32 | DN25 | $310 | $460 |
| G30-1 | 5 | 2.2 | 60 | DN50 | DN40 | $320 | $470 |
| G30-2 | 5 | 3 | 120 | DN50 | DN40 | $400 | $600 |
| G35-1 | 8 | 3 | 60 | DN65 | DN50 | $380 | $580 |
| G35-2 | 8 | 4 | 120 | DN65 | DN50 | $440 | $670 |
| G40-1 | 12 | 4 | 60 | DN80 | DN65 | $400 | $630 |
| G40-2 | 12 | 5.5 | 120 | DN80 | DN65 | $450 | $720 |
| G50-1 | 20 | 5.5 | 60 | DN100 | DN80 | $530 | $800 |
| G50-2 | 20 | 7.5 | 120 | DN100 | DN80 | $650 | $1030 |
| G60-1 | 30 | 11 | 60 | DN125 | DN100 | $780 | $1240 |
| G60-2 | 30 | 11 | 120 | DN125 | DN100 | $940 | $1550 |
| G70-1 | 45 | 11 | 60 | DN150 | DN125 | $1160 | $1780 |
| G70-2 | 45 | 15 | 120 | DN150 | DN125 | $1650 | $2440 |
| G85-1 | 60 | 11 | 60 | DN150 | DN150 | $1640 | $2650 |
| G85-2 | 60 | 15 | 120 | DN150 | DN150 | $2360 | $3140 |
- Stator: NBR
- Rotor: Bearing steel
- Pump body: Cast Iron
- Seal: Packing seal
If you need other materials and configurations, please contact us.
SS304 G type single screw pump ex-factory price list
| Type | Flow (m³/h) | Motor (Kw) | Head (m) | Inlet (mm) | Outlet (mm) | Pump with base (without motor) | Whole pump |
|---|---|---|---|---|---|---|---|
| G20-1 | 0.8 | 0.75 | 60 | DN25 | DN25 | $310 | $360 |
| G20-2 | 0.8 | 1.1 | 120 | DN25 | DN25 | $340 | $430 |
| G25-1 | 2 | 1.5 | 60 | DN32 | DN25 | $460 | $530 |
| G25-2 | 2 | 2.2 | 120 | DN32 | DN25 | $490 | $640 |
| G30-1 | 5 | 2.2 | 60 | DN50 | DN40 | $550 | $650 |
| G30-2 | 5 | 3 | 120 | DN50 | DN40 | $590 | $800 |
| G35-1 | 8 | 3 | 60 | DN65 | DN50 | $650 | $800 |
| G35-2 | 8 | 4 | 120 | DN65 | DN50 | $660 | $890 |
| G40-1 | 12 | 4 | 60 | DN80 | DN65 | $660 | $840 |
| G40-2 | 12 | 5.5 | 120 | DN80 | DN65 | $690 | $960 |
| G50-1 | 20 | 5.5 | 60 | DN100 | DN80 | $970 | $1160 |
| G50-2 | 20 | 7.5 | 120 | DN100 | DN80 | $1070 | $1450 |
| G60-1 | 30 | 11 | 60 | DN125 | DN100 | $1360 | $1700 |
| G60-2 | 30 | 11 | 120 | DN125 | DN100 | $1550 | $2160 |
| G70-1 | 45 | 11 | 60 | DN150 | DN125 | $1820 | $2260 |
| G70-2 | 45 | 15 | 120 | DN150 | DN125 | $2380 | $3170 |
| G85-1 | 60 | 11 | 60 | DN150 | DN150 | $2500 | $3280 |
| G85-2 | 60 | 15 | 120 | DN150 | DN150 | $3070 | $3900 |
- Stator: NBR
- Rotor: SS304
- Pump body: SS304
- Seal: Packing seal
If you need other materials and configurations, please contact us.
Food hygiene grade SS304 G type single screw pump ex-factory price list
| Type | Flow (m³/h) | Motor (Kw) | Head (m) | Inlet (mm) | Outlet (mm) | Pump with base (without motor) | Whole pump |
|---|---|---|---|---|---|---|---|
| G20-1 | 0.8 | 0.75 | 60 | DN25 | DN25 | $320 | $400 |
| G20-2 | 0.8 | 1.1 | 120 | DN25 | DN25 | $400 | $490 |
| G25-1 | 2 | 1.5 | 60 | DN32 | DN25 | $460 | $580 |
| G25-2 | 2 | 2.2 | 120 | DN32 | DN25 | $540 | $690 |
| G30-1 | 5 | 2.2 | 60 | DN50 | DN40 | $550 | $700 |
| G30-2 | 5 | 3 | 120 | DN50 | DN40 | $650 | $850 |
| G35-1 | 8 | 3 | 60 | DN65 | DN50 | $650 | $850 |
| G35-2 | 8 | 4 | 120 | DN65 | DN50 | $730 | $960 |
| G40-1 | 12 | 4 | 60 | DN80 | DN65 | $660 | $900 |
| G40-2 | 12 | 5.5 | 120 | DN80 | DN65 | $750 | $1020 |
| G50-1 | 20 | 5.5 | 60 | DN100 | DN80 | $980 | $1250 |
| G50-2 | 20 | 7.5 | 120 | DN100 | DN80 | $1200 | $1580 |
| G60-1 | 30 | 11 | 60 | DN125 | DN100 | $1360 | $1830 |
| G60-2 | 30 | 11 | 120 | DN125 | DN100 | $1600 | $2210 |
| G70-1 | 45 | 11 | 60 | DN150 | DN125 | $2000 | $2600 |
| G70-2 | 45 | 15 | 120 | DN150 | DN125 | $2610 | $3400 |
| G85-1 | 60 | 11 | 60 | DN150 | DN150 | $2470 | $3480 |
| G85-2 | 60 | 15 | 120 | DN150 | DN150 | $3850 | $4730 |
- Stator: Food grade rubber / Silica gel
- Rotor: SS304
- Pump body: SS304
- Seal: Packing seal
If you need other materials and configurations, please contact us.
